概括
Summary

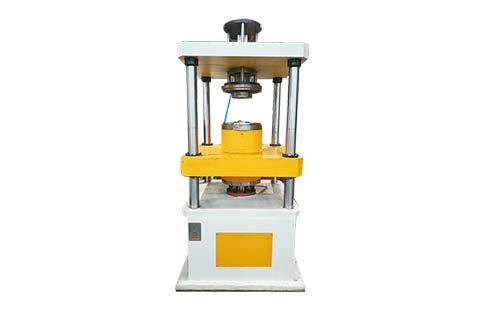

壓配機是適用小線輪輻和輪輞的拆卸的，將輪輻壓入輪輞內，并可安裝許要手動擋制定輪輻輪輞之中的偏距值，定位功能精度，為輪輻和輪輞的焊接生產后的運動提供保險。配件上的認同四柱式方式 ，可能或是保險壓配幾率身始終堅持最號的柔性，提高 了輪輻與輪輞壓配時的齊心合力度。Press-fitting machine is used for assembly of small size disc and rim. It can press disc into rim precisely and can manually adjust offset distance between disc and rim. It also can locate accurately, which can guarantee disc and rims run-out after welding. The whole equipment adopts four-pillar structure, which can guarantee the machine body to keep its rigidity during assembly and can provide their concentricity.The press-fitting machine is composed of pre-pressing cylinder, pull rod, sliding block, base seat, main oil cylinder and necessary molds.| 技能型號規格 | Model Number | Номер модели | YPJ-400-AH |
| 配電網工作電壓 | Power Supply | Мощность | AC 380V±10%, 3phase, 50Hz |
| 壓配力 | Press-Fitting Force | Сила сжатия при сборке | 320KN |
| 壓縮分為 | Pressure of Compressed Air | Давление сжатого воздуха | 0.4 ~ 0.6Mpa |
| 任務卡臺路途 | Travel of Working Table | Ход рабочего стола | 300mm |
| 制作加工輪輞規模性 | Processing Range of Rim | Диапазон размеров обода | 12 inches ~ 18 inches |
| 任務卡面板積 | Working Table Size | Размер рабочего стола | 900mm x 900mm |
